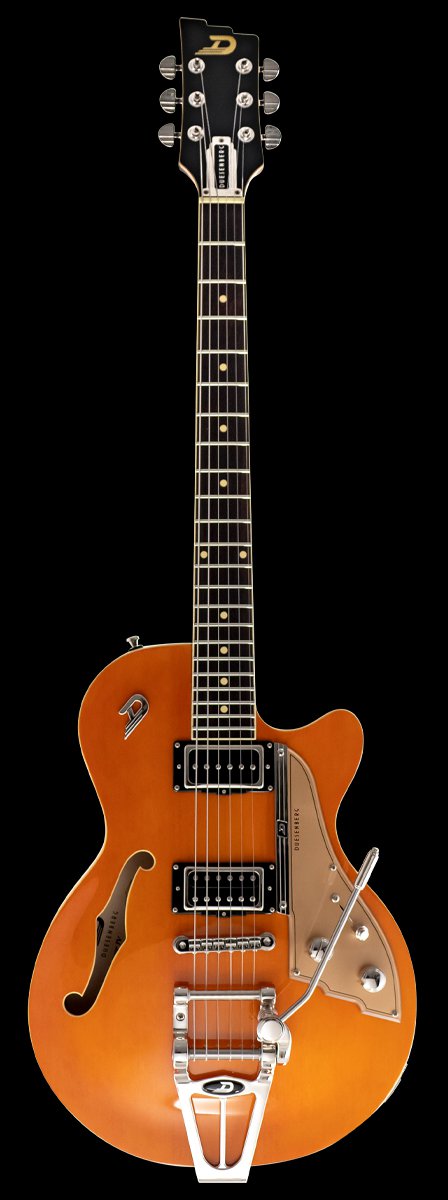

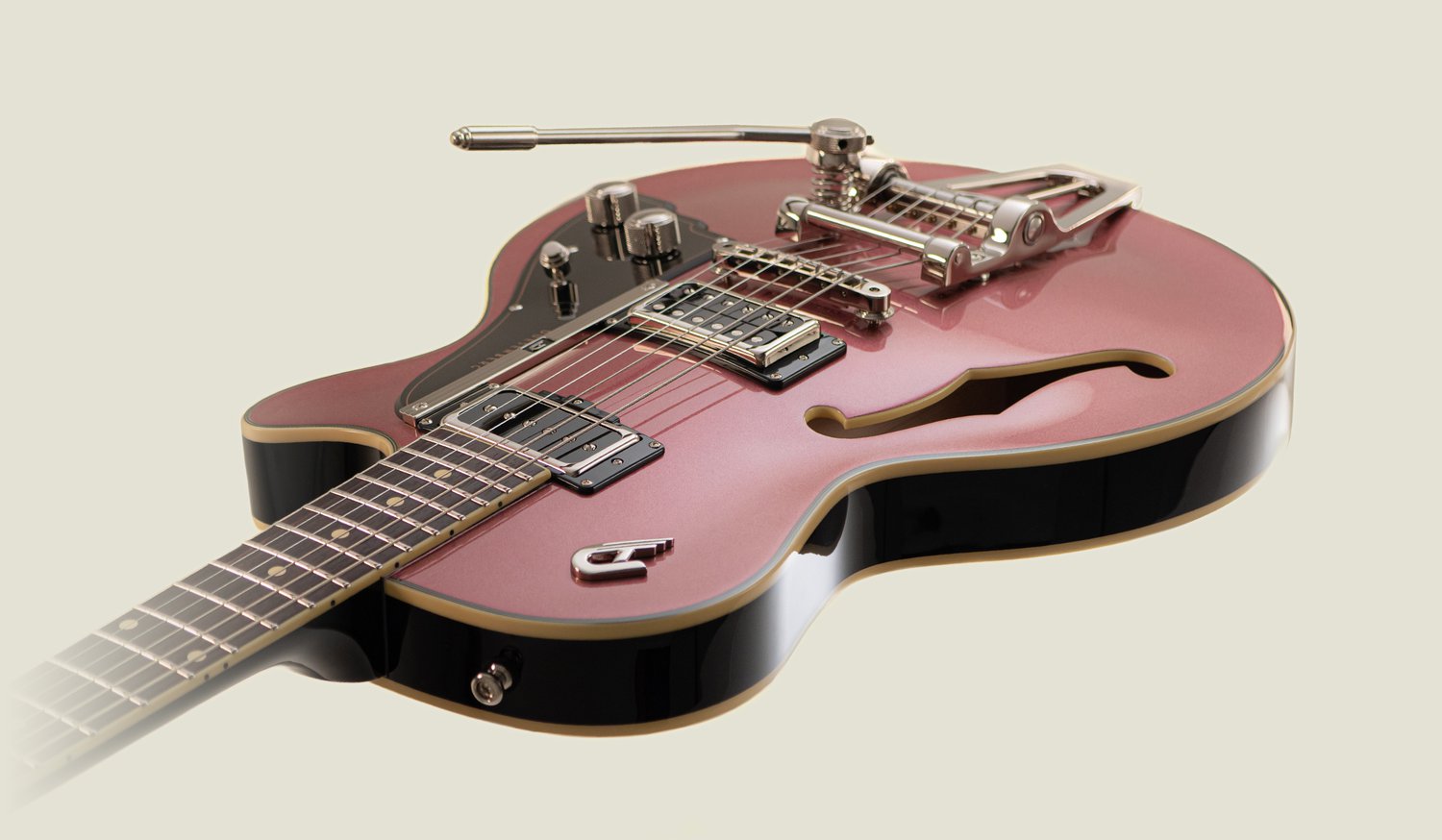

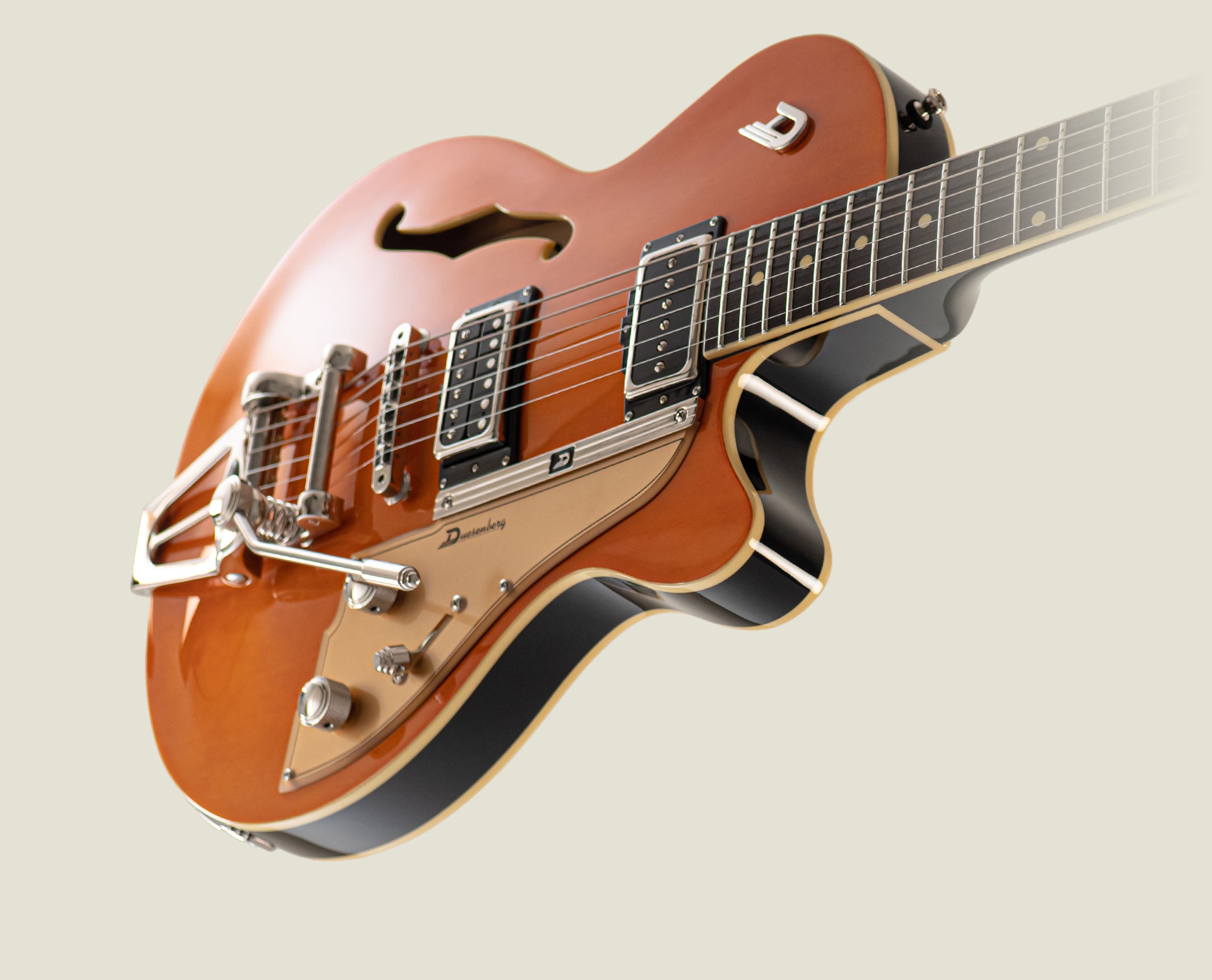

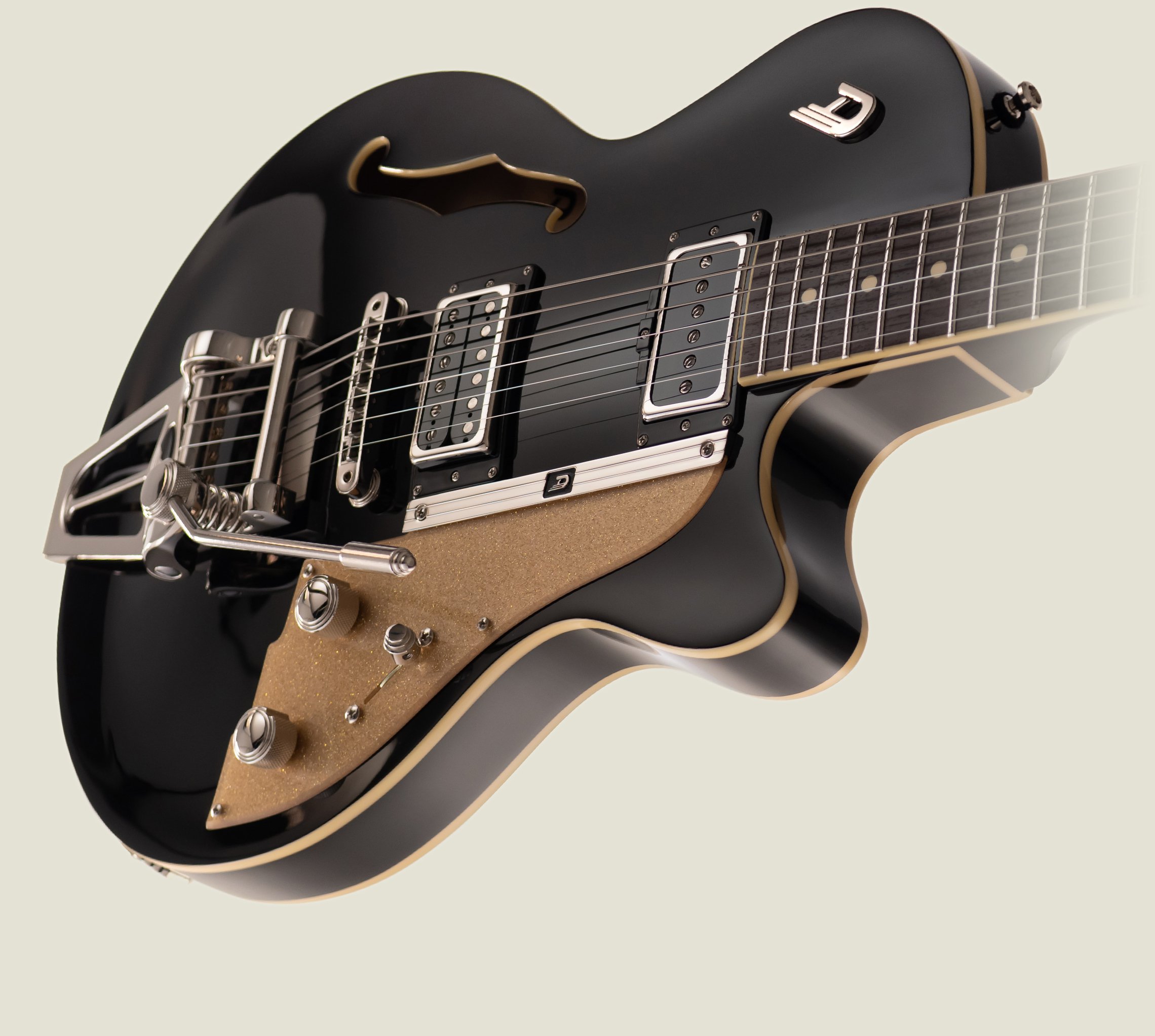

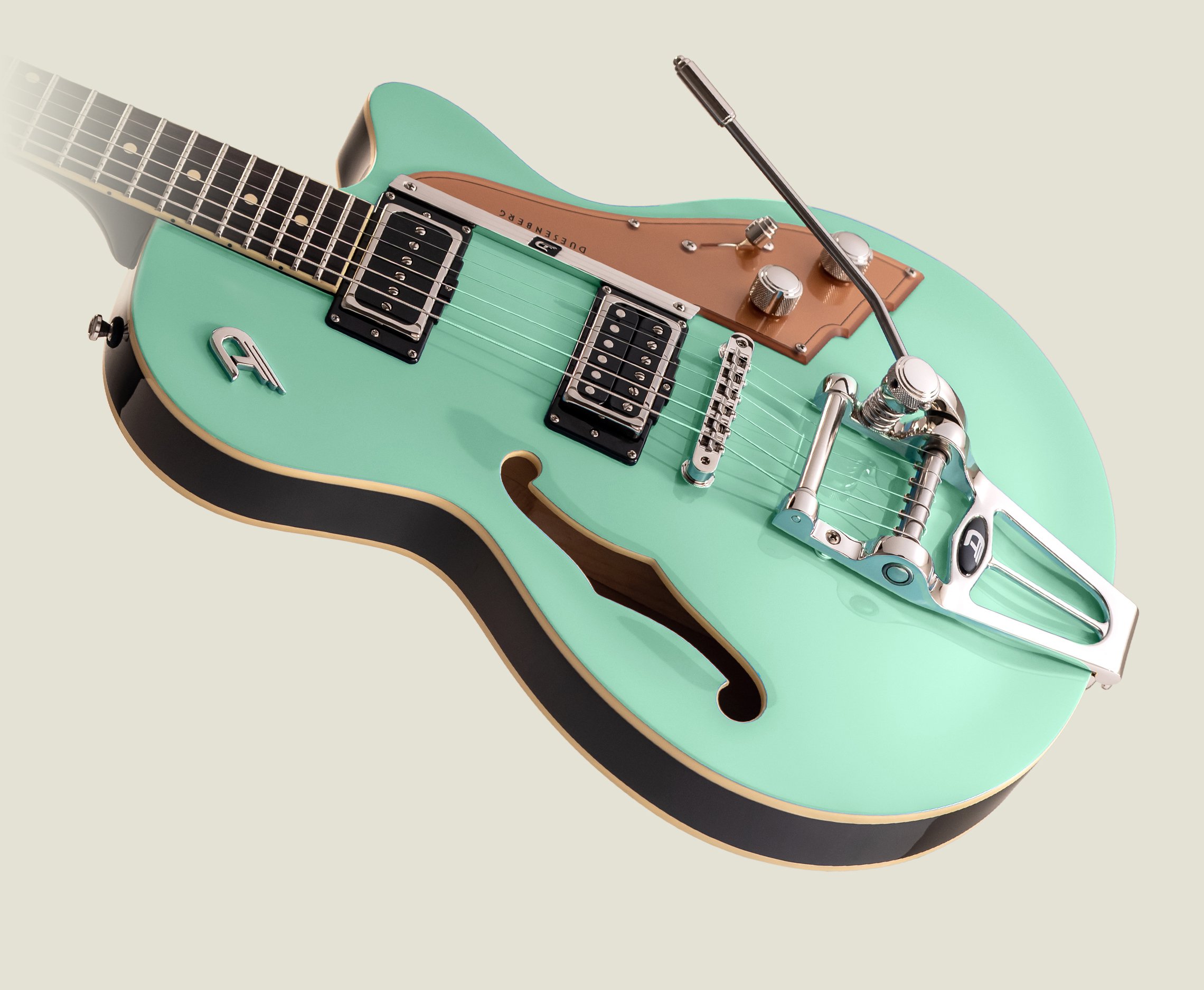

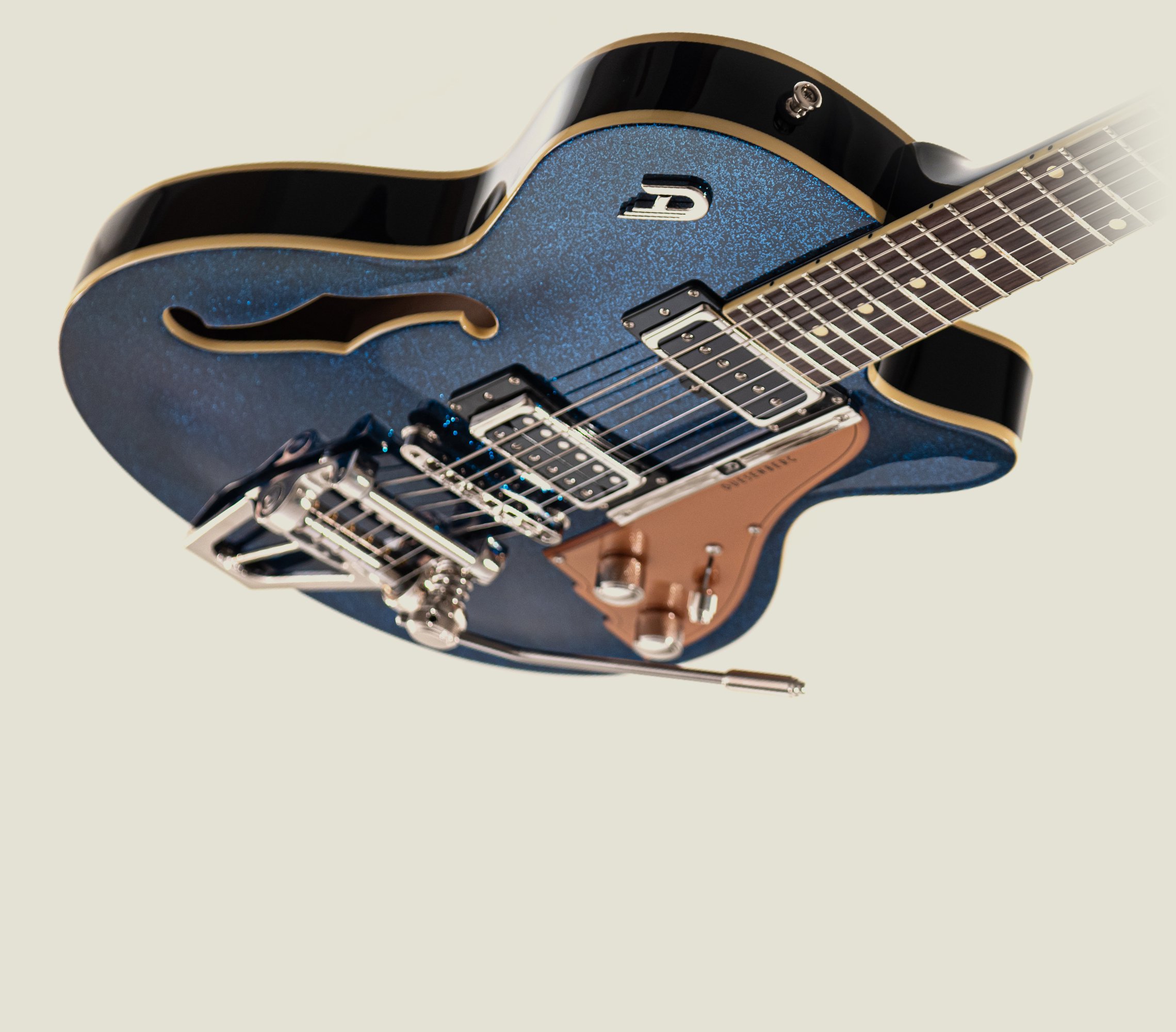

Semi-Hollow with centerblock for a unique tonal response and improved feedback resistance.

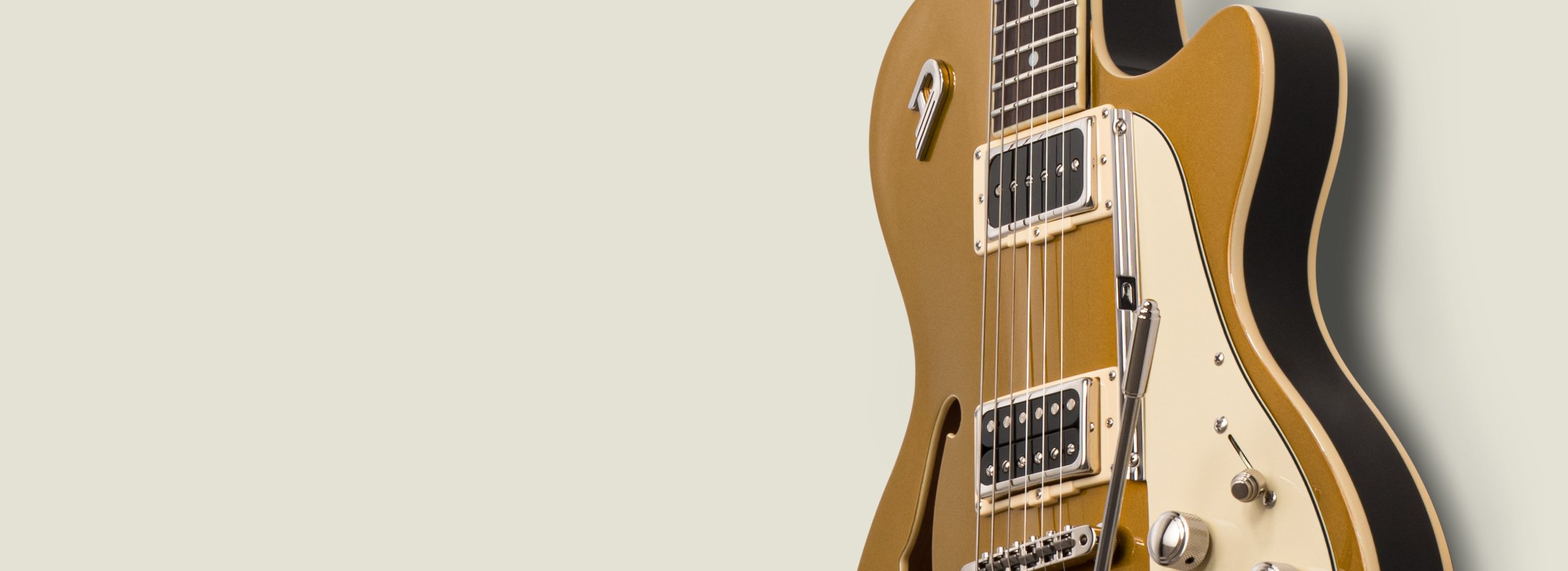

The GrandVintage Humbucker and Domino P90 deliver maximum flexibility and an ingenious wiring.

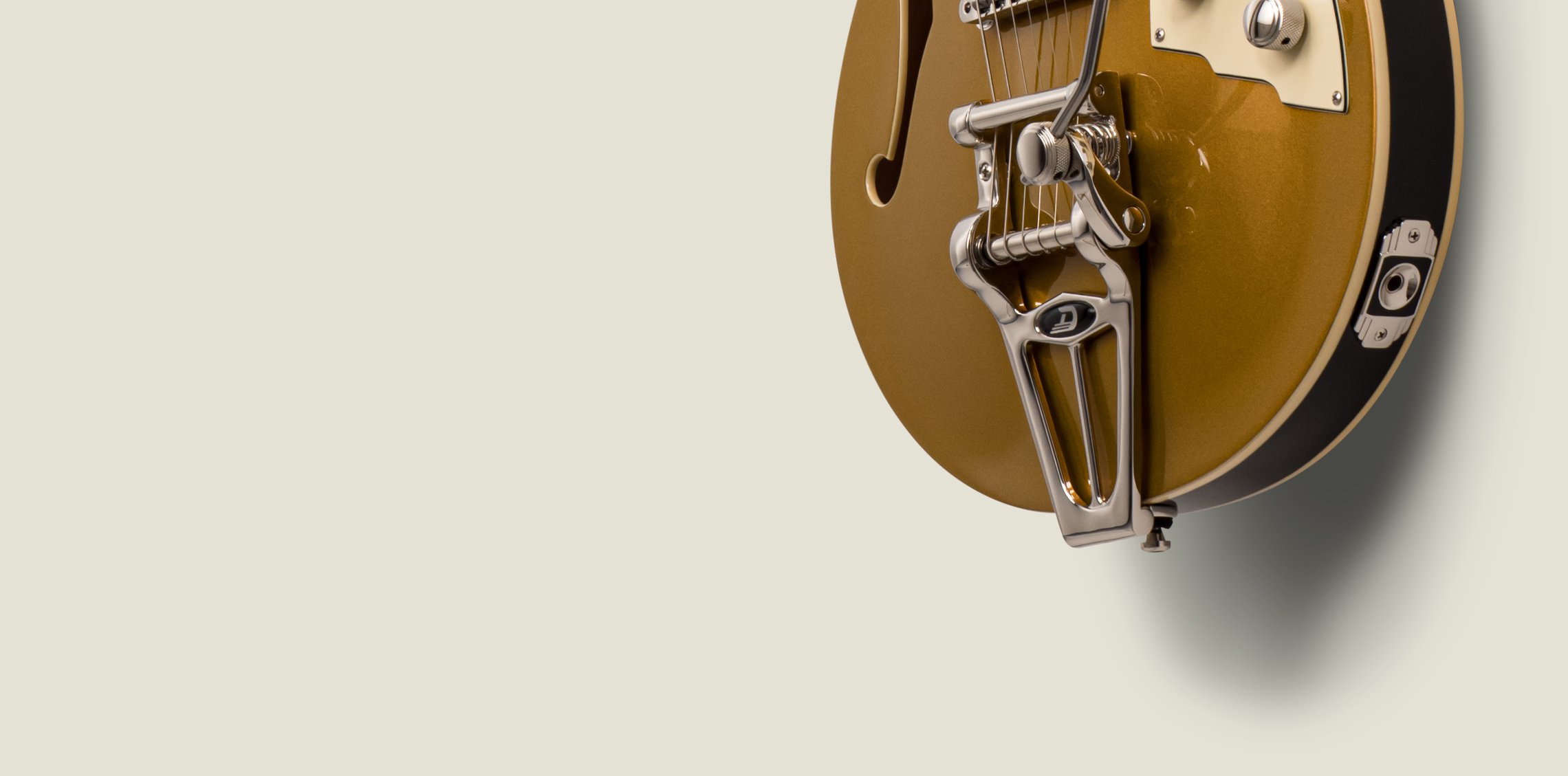

The Duesenberg Diamond Deluxe Tremola is the pinnacle of modern classic vibrato design and reliability.
The longer 25.5" scale length provides snappy response, defined bass frequencies and a tight feel.
Plek processed for an impeccable setup and comfortably low action without fret-buzz.
Our Custom 10/50 factory strings provide tight bass feel while keeping the high notes easy to play.

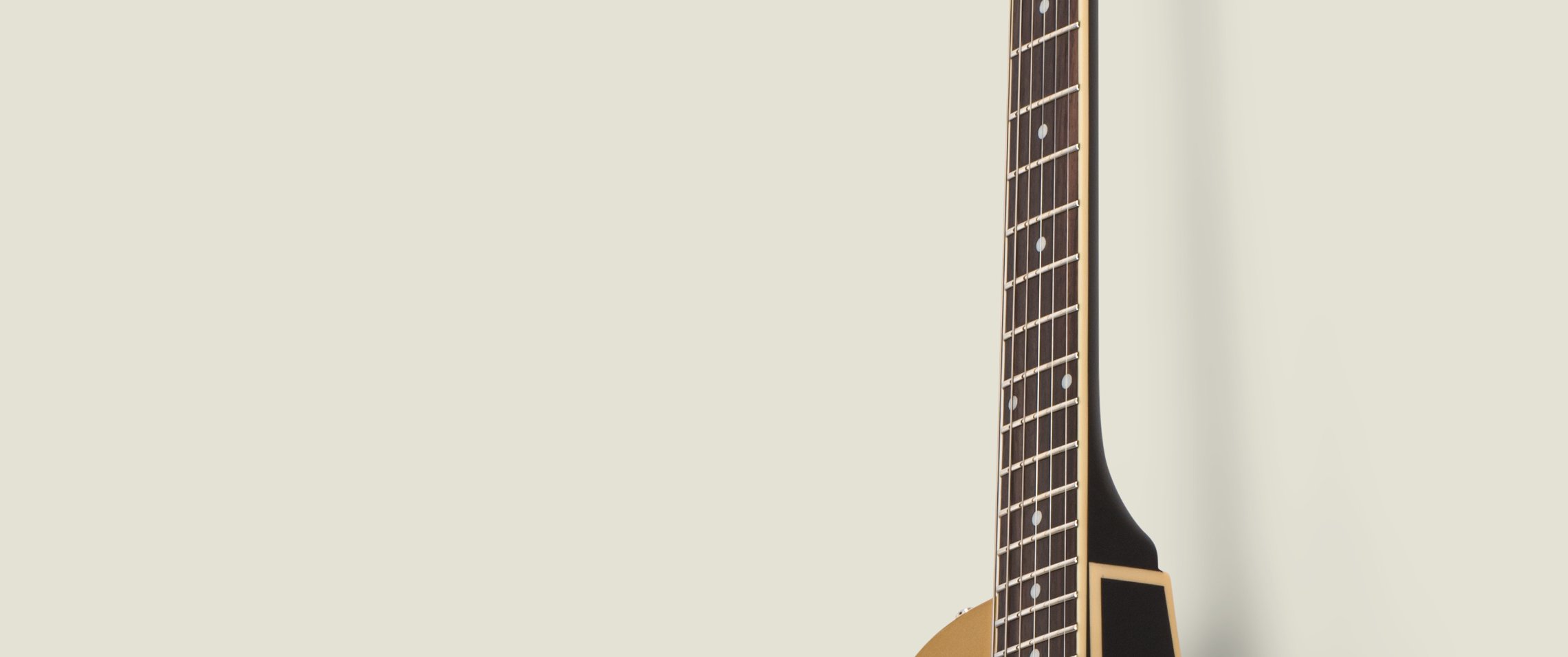

| Type: | Set Neck, 1-piece Maple |
| Width: | 42.5 mm / 1.67" (nut), 52 mm / 2.05" (12th fret) |
| Thickness: | 21 mm / 0.8" (1st fret), 24 mm / 0.95" (12th fret) |
| Shape: | Medium D |
| Fingerboard: | Indian Rosewood, radius 305 mm / 12" |
| Inlays: | Cream dots |
| Frets: | 22 Jumbo 2.8 x 1.0 mm |
| Scale length: | 648 mm / 25.5" |
| Trussrod: | Steel dual-action |

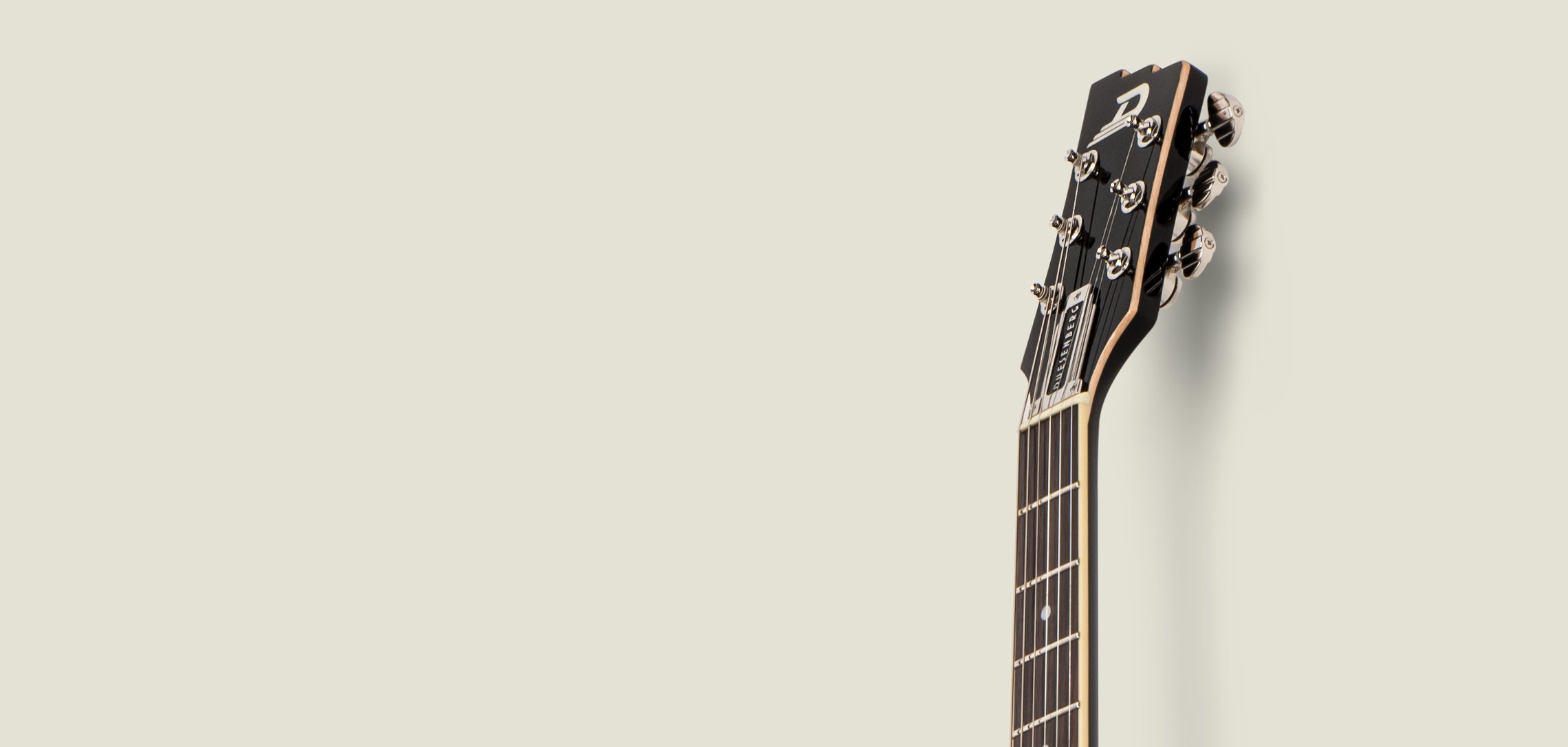

| Headstock: | Black |
| Type: | Semi-hollow with sustain block, bent sides, f-hole |
| Top: | Laminated spruce |

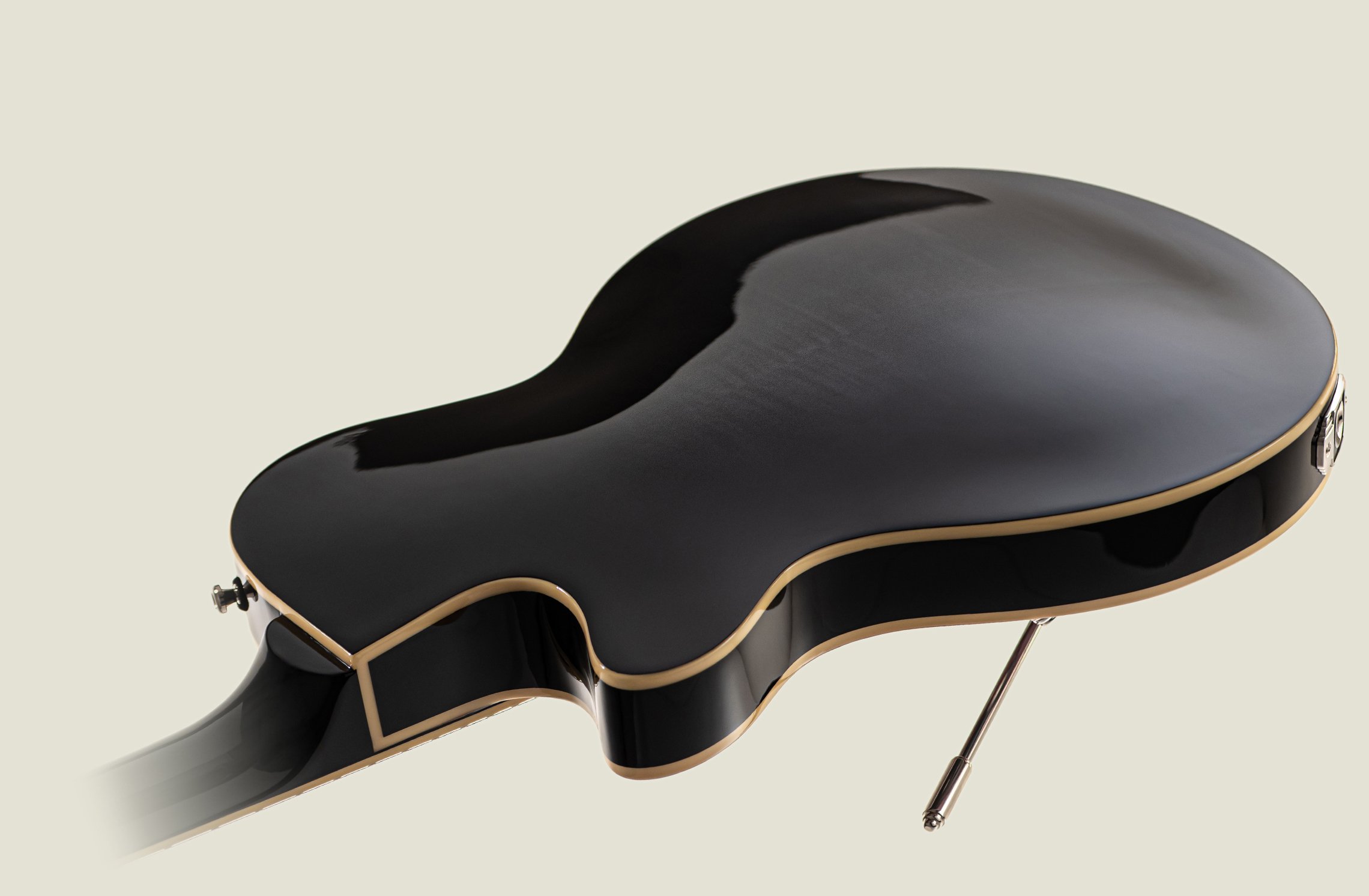

| Back, sides: | Laminated flamed maple |
| Dimensions: | 46 x 34 cm / 18.11" x 13.38" |
| Height (sides): | 4.5 cm / 1.8" |
| Binding: | Cream |
| Pickguard: | Sparkle, Black/Gold Custom or nickel-plated brass (depending on the model) |
| Finish: | PUR lacquer (Polyester used on Sparkle, Pearl and Pearloid tops). Back and sides Trans-Black, except for special models. |
| Tuners: | Duesenberg Z-Tuners |
| Bridge: | Duesenberg Steel Saddle Bridge |
| Tailpiece: | Duesenberg Aluminum Stop Tailpiece (non-trem models only) |
| Vibrato System: | Duesenberg Diamond Deluxe Tremola (trem models only) |
| Strap pins: | Duesenberg Standard (Straplock compatible) |
| Hardware finish: | Nickel |
| Strings: | Duesenberg Custom 10/50 (010-013-017-028-042-050) |
| Pickup (neck): | Duesenberg Domino P90 |
| Pickup (bridge): | Duesenberg GrandVintage Humbucker |
| Wiring: | 1 Volume, 1 Tone, 3-Way Pickup Selector |

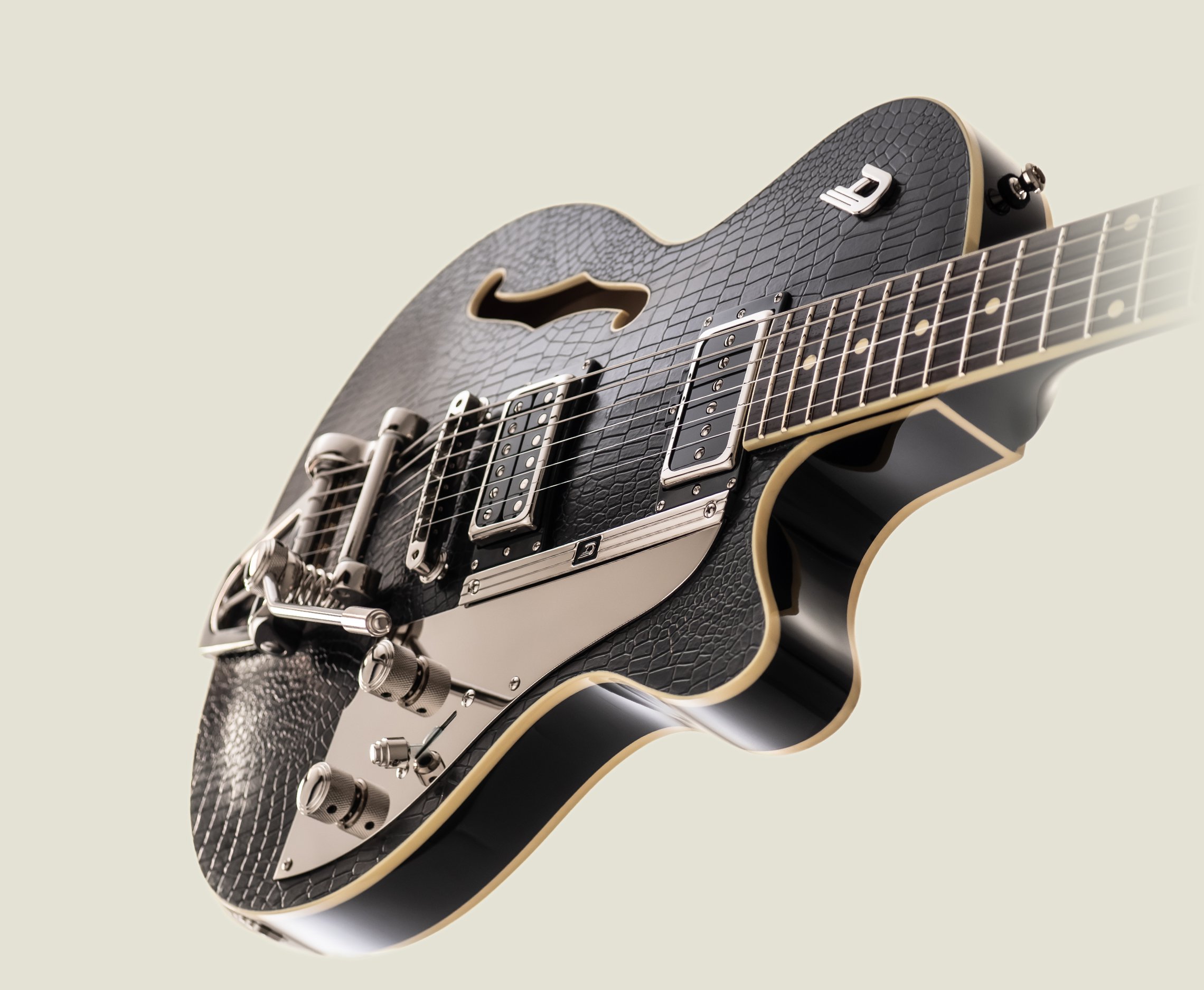

| Outlaw: | Skai-leather on top and headstock, nickel pickguard |
| Gold-Top: | Cream pickguard and cream pickup rings |

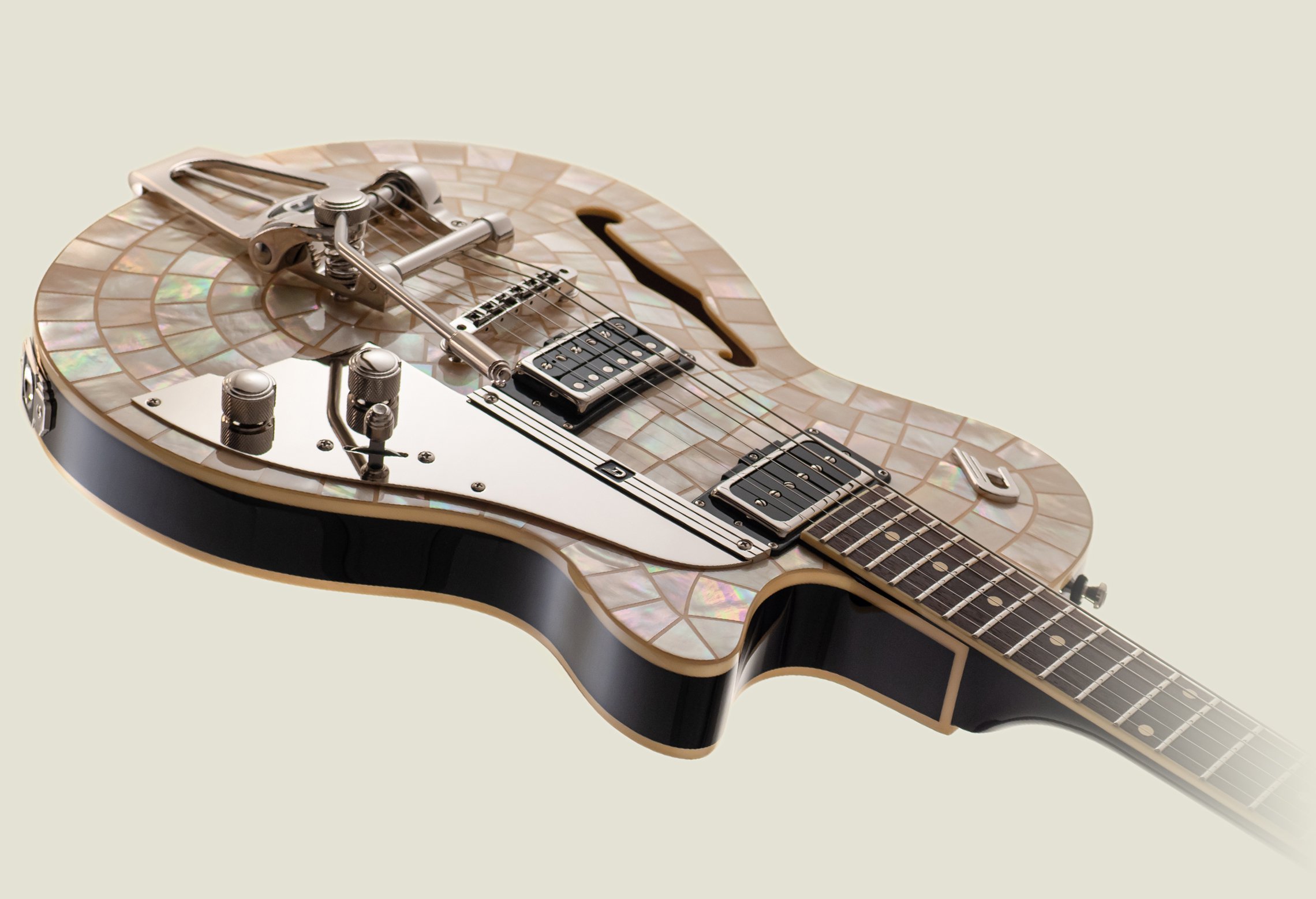

| Pearl models: | Pearl mosaic on top and headstock, nickel pickguard |

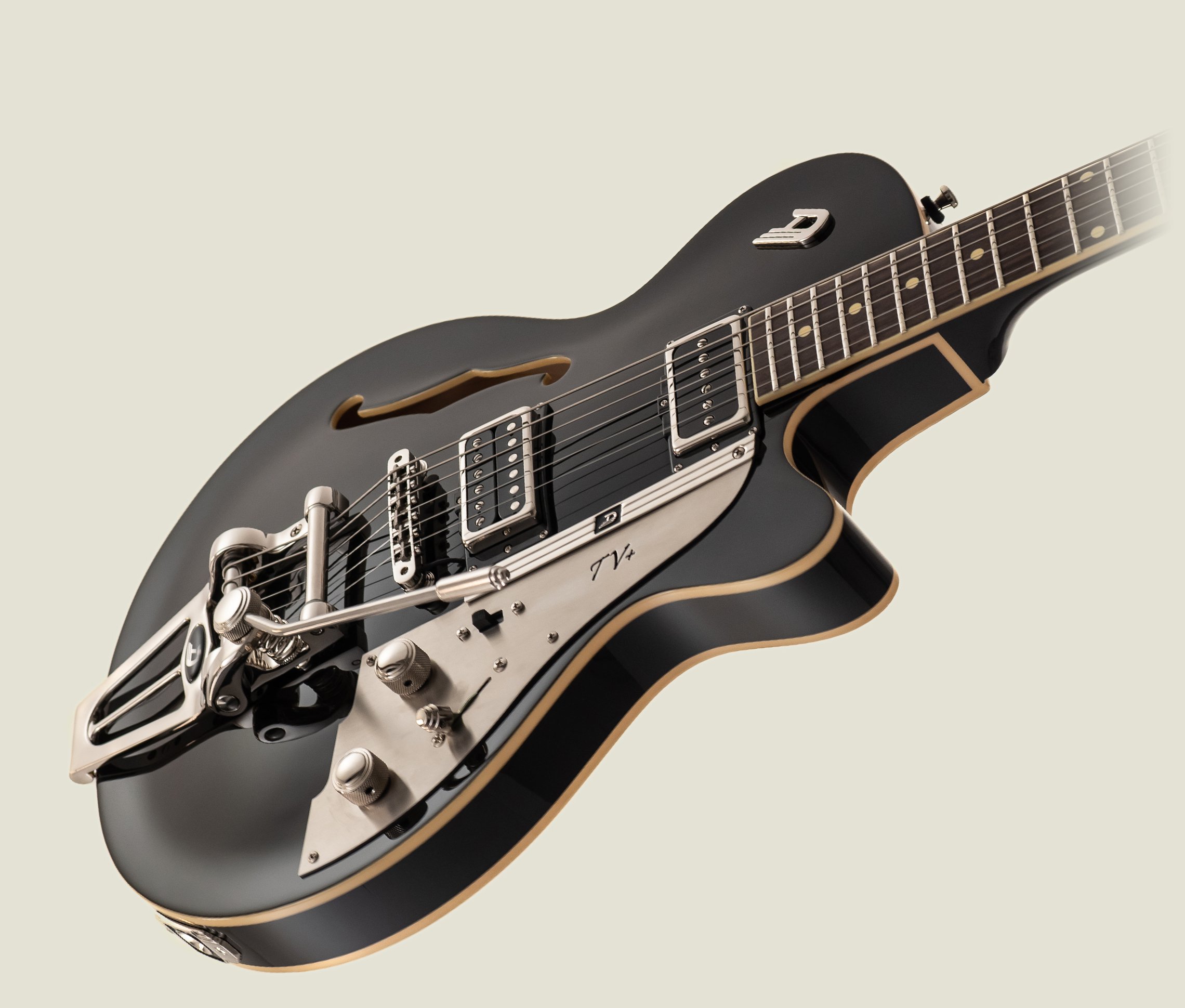

| TV+: | Piezo bridge, stainless steel pickguard, multi-tone-pot |

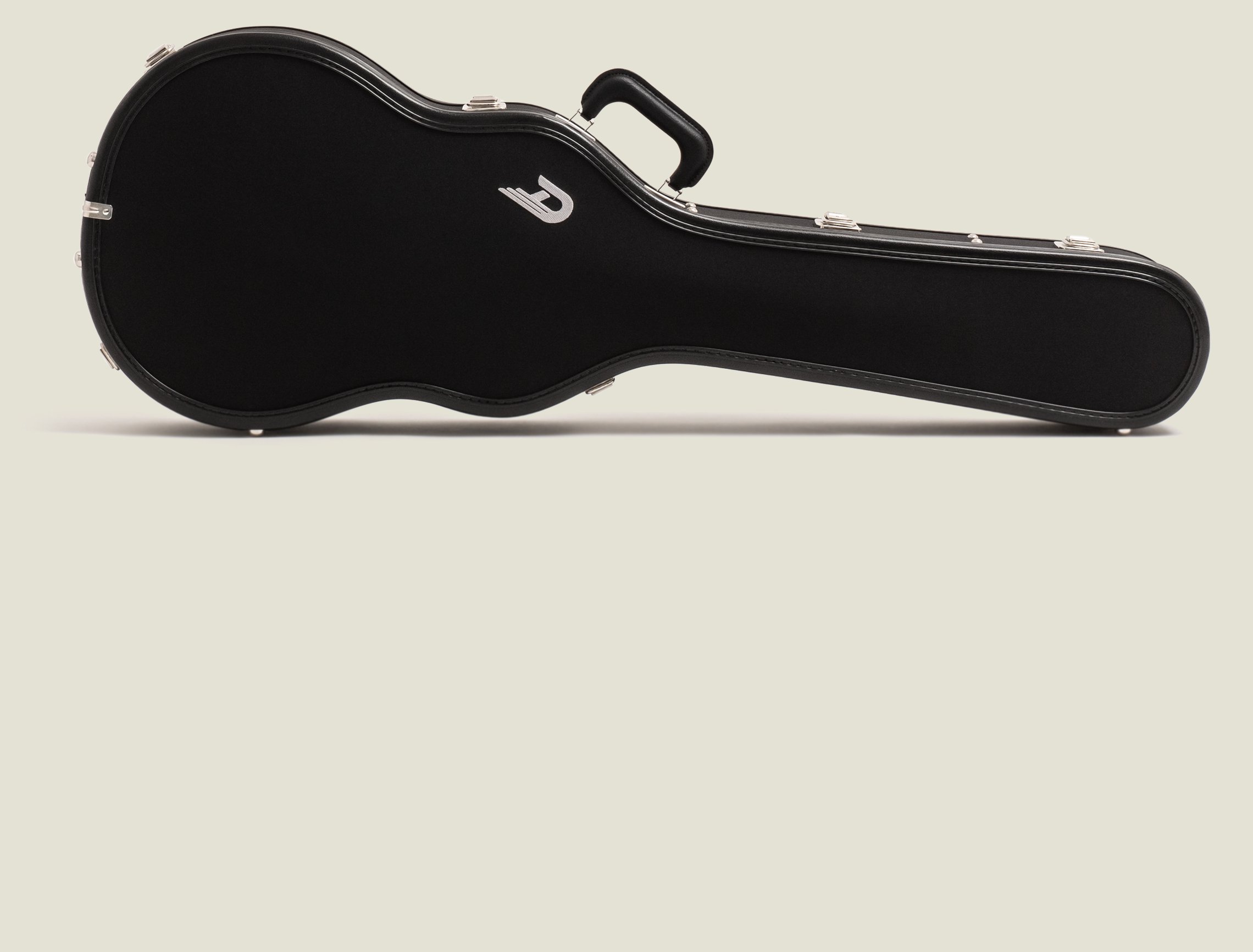

| Case: | Custom Line Case (included) |
| Tools: | All required allen keys (included) |

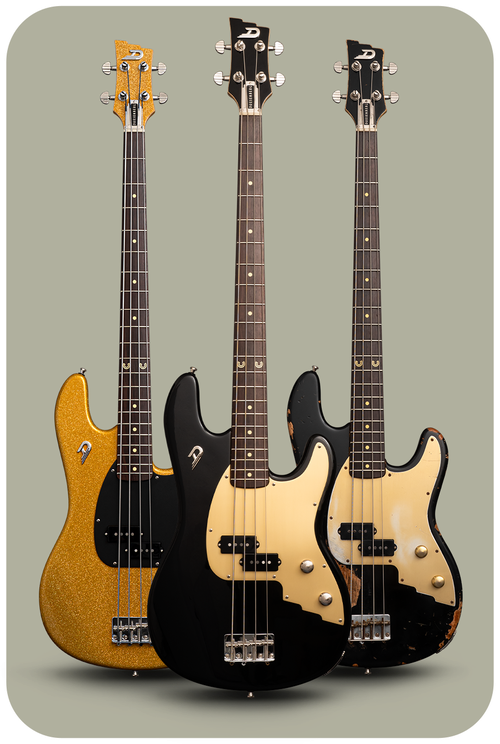

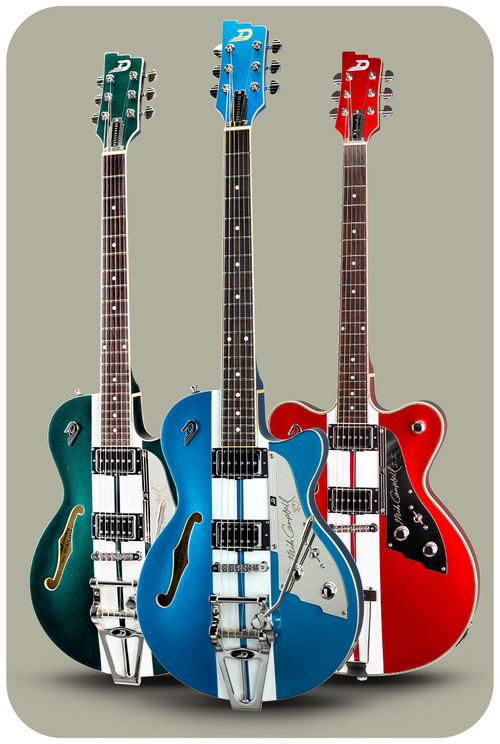

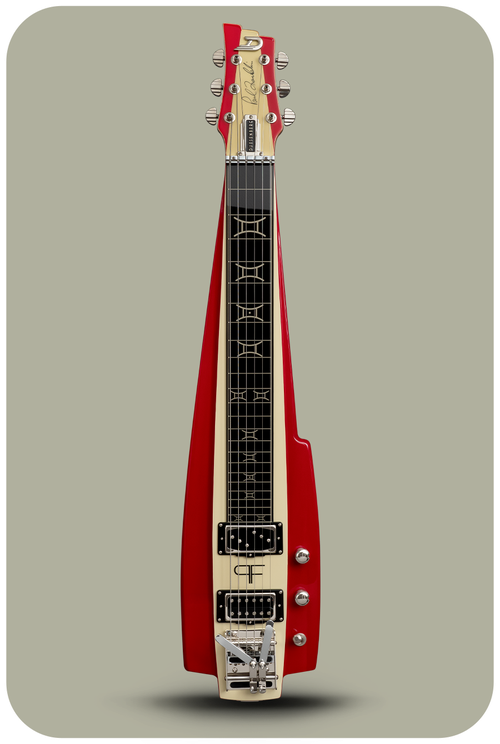

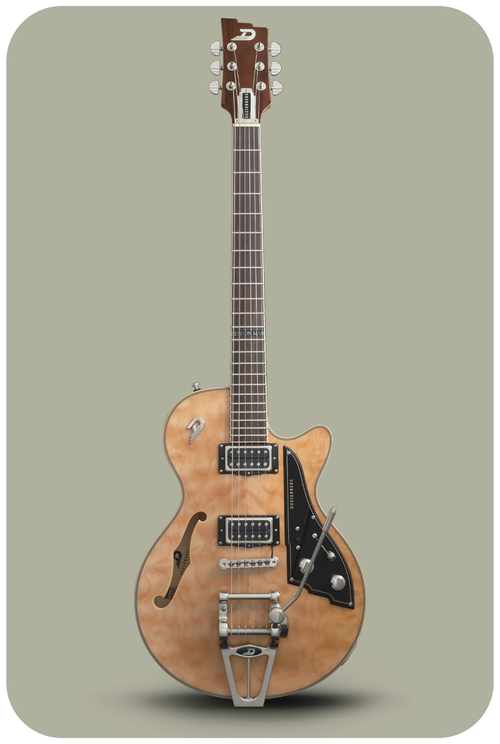

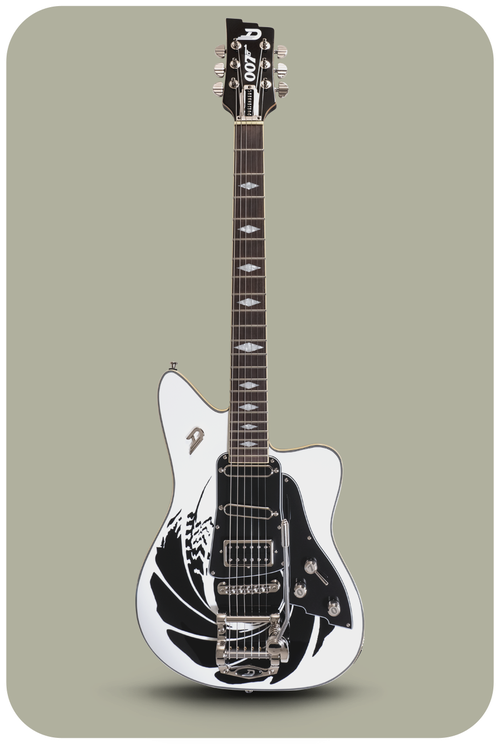

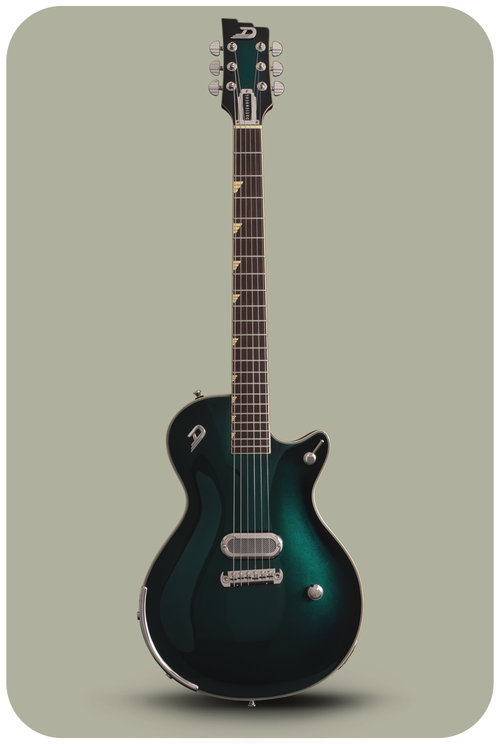

Instruments we created in collaboration with artists around the world. Designed for their individual needs, but made for everyone.

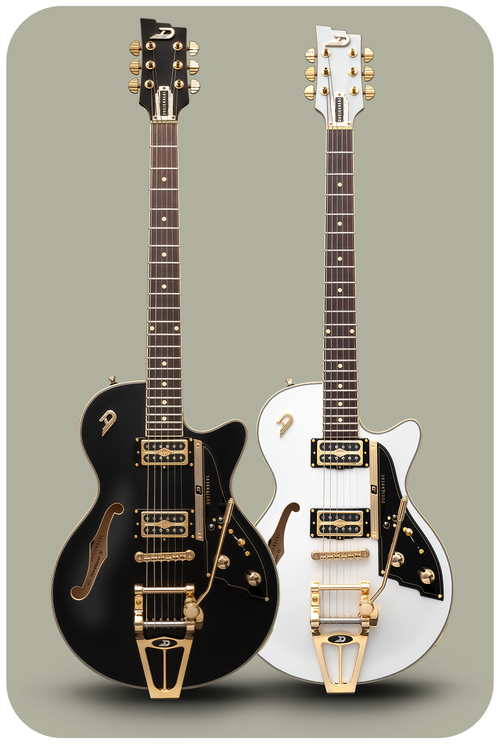

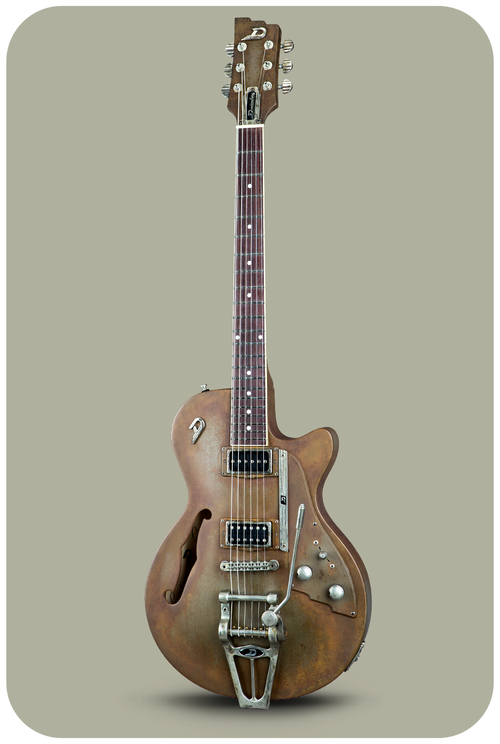

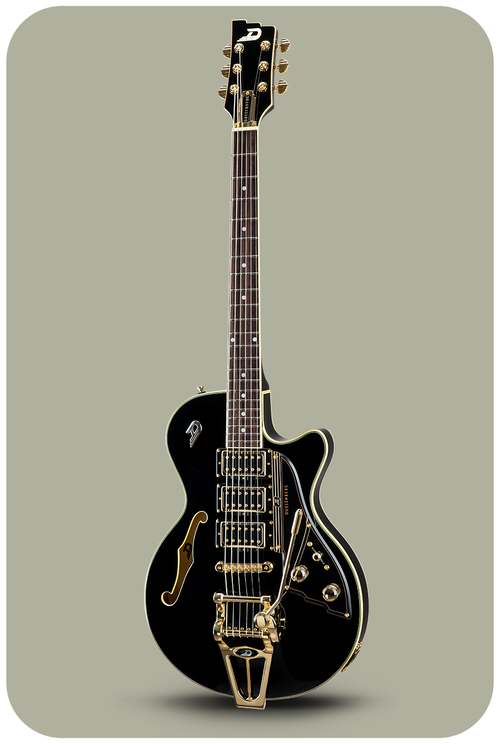

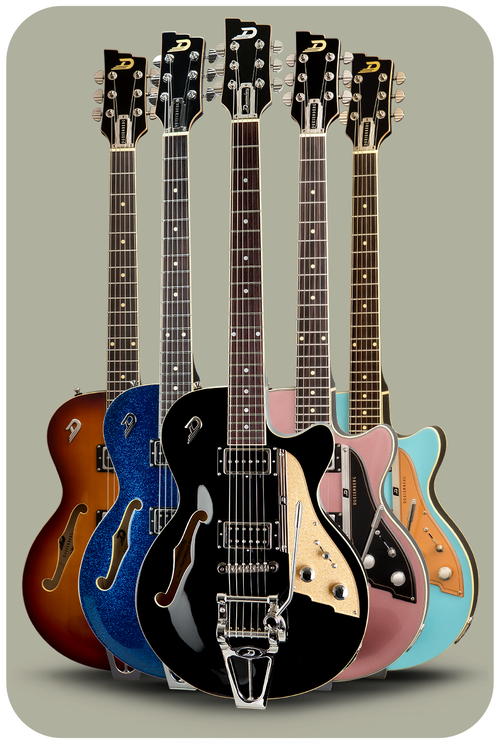

Bent sides and glued on top and back. Added solid center block. The classic construction. Semi-Hollow instruments combine the distinct tone of a hollow construction with the feedback resistance of a solid body. Extremely versatile.

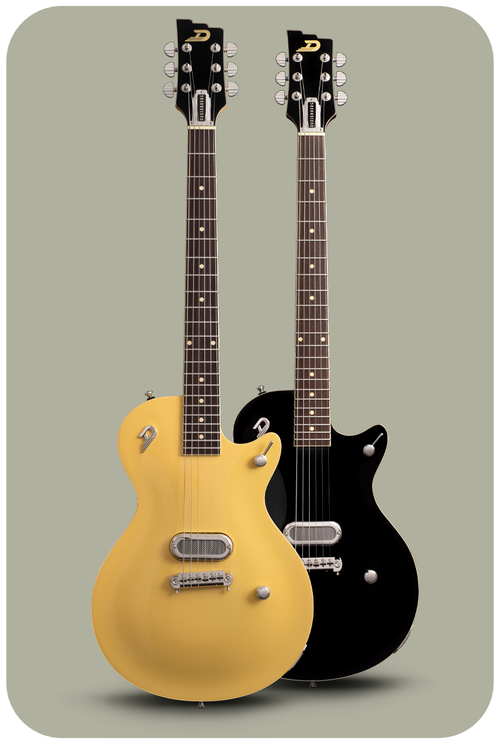

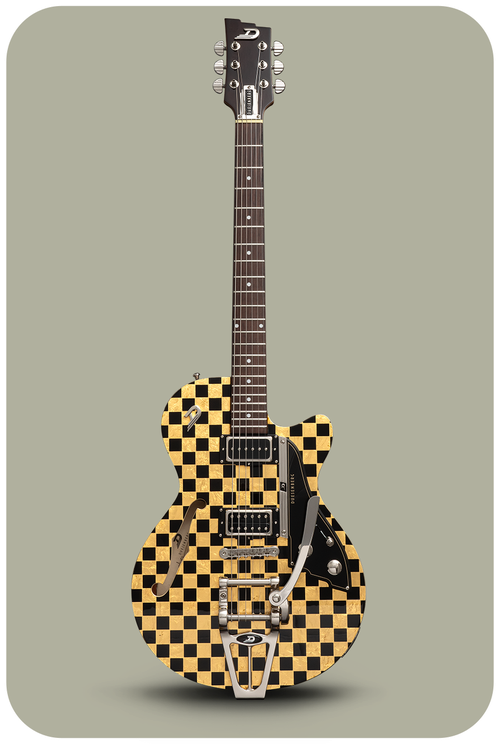

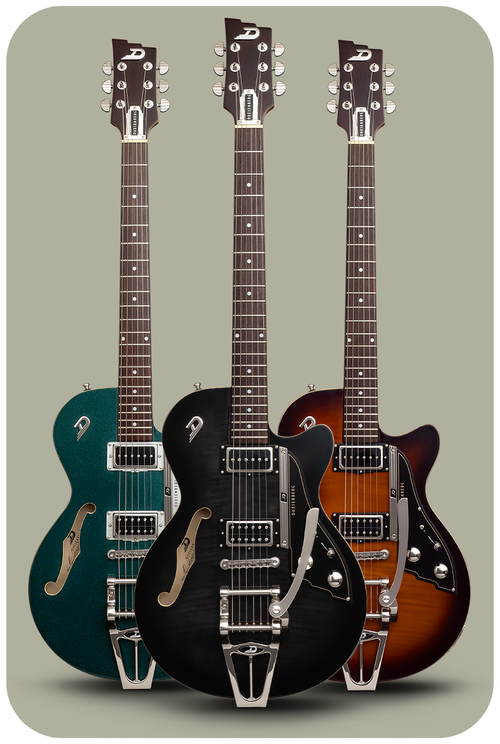

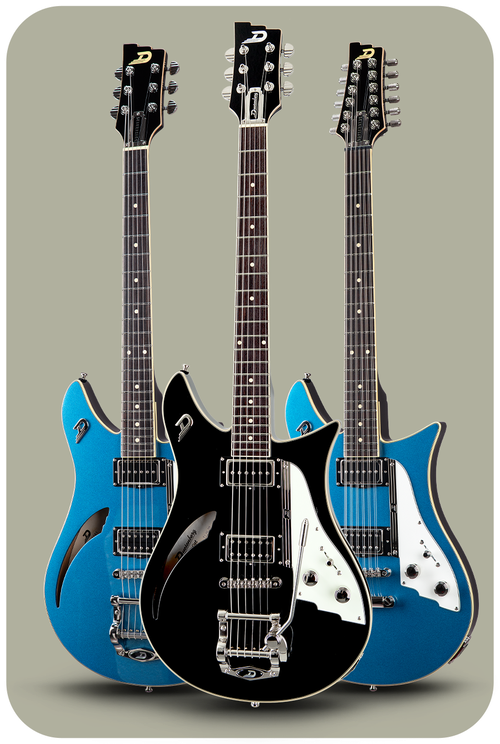

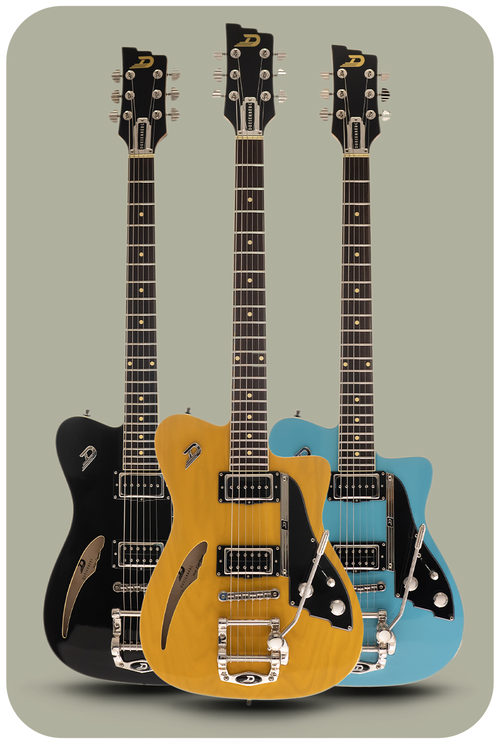

A solid body that features big sound chambers for enhanced tone and weight reduction. Particularly characteristic tone somewhere between a solid and semi-hollow construction.

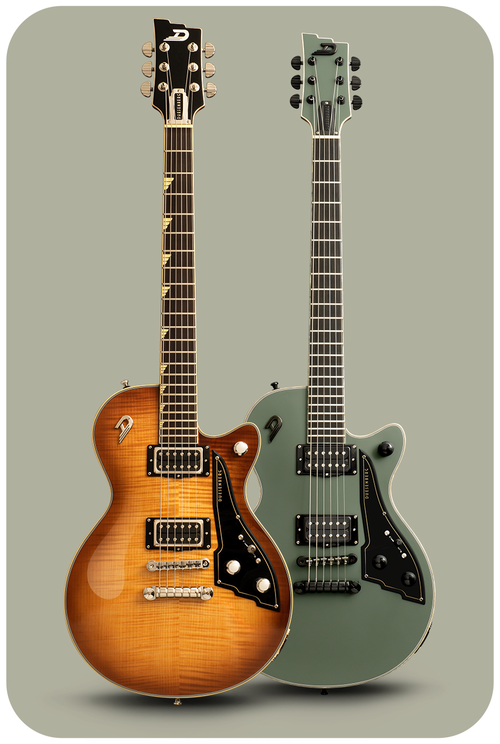

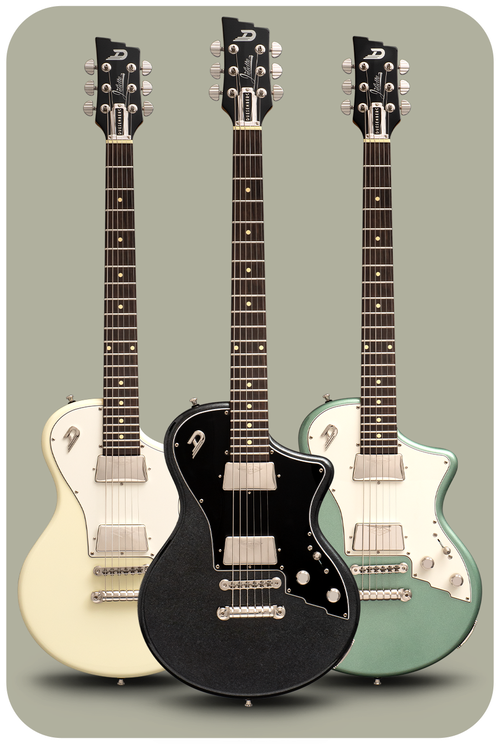

Made from a single slab of wood. Delivers instant response, a lot of attack and sustain and perfect feedback resistance.
