Large sound chambers deliver a lighter and more resonant guitar compared to a regular solidbody construction.

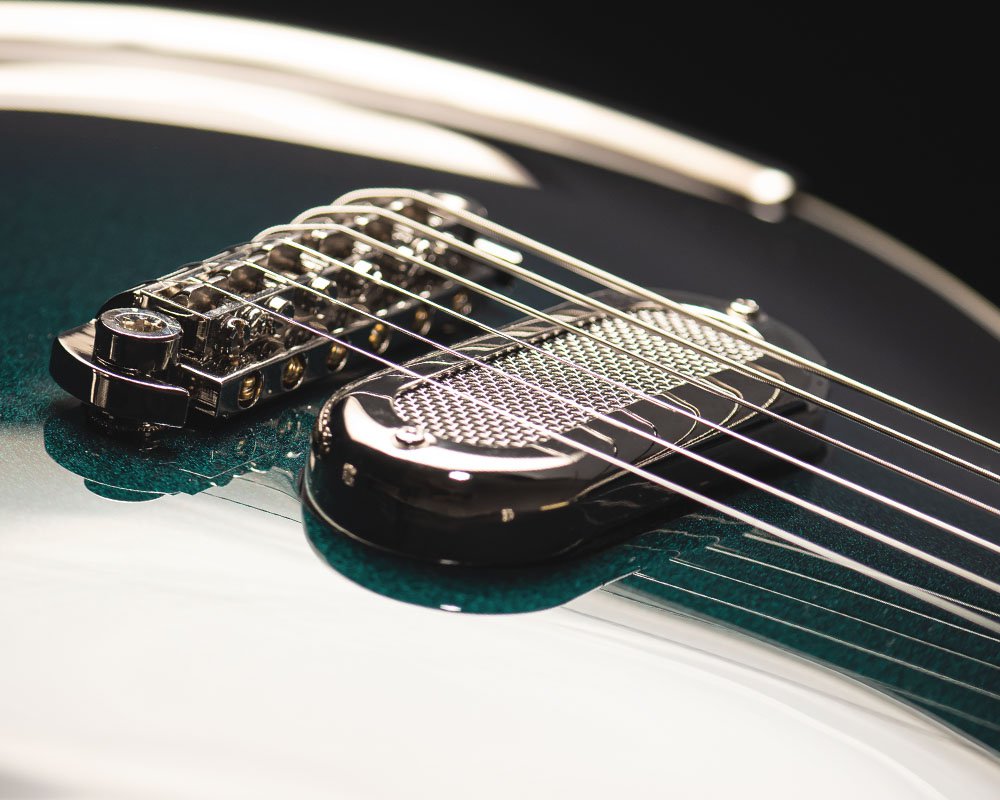

The single Split/King pickup at the bridge offers three sound options: true Singlecoil, true Humbucker and a combination of both.

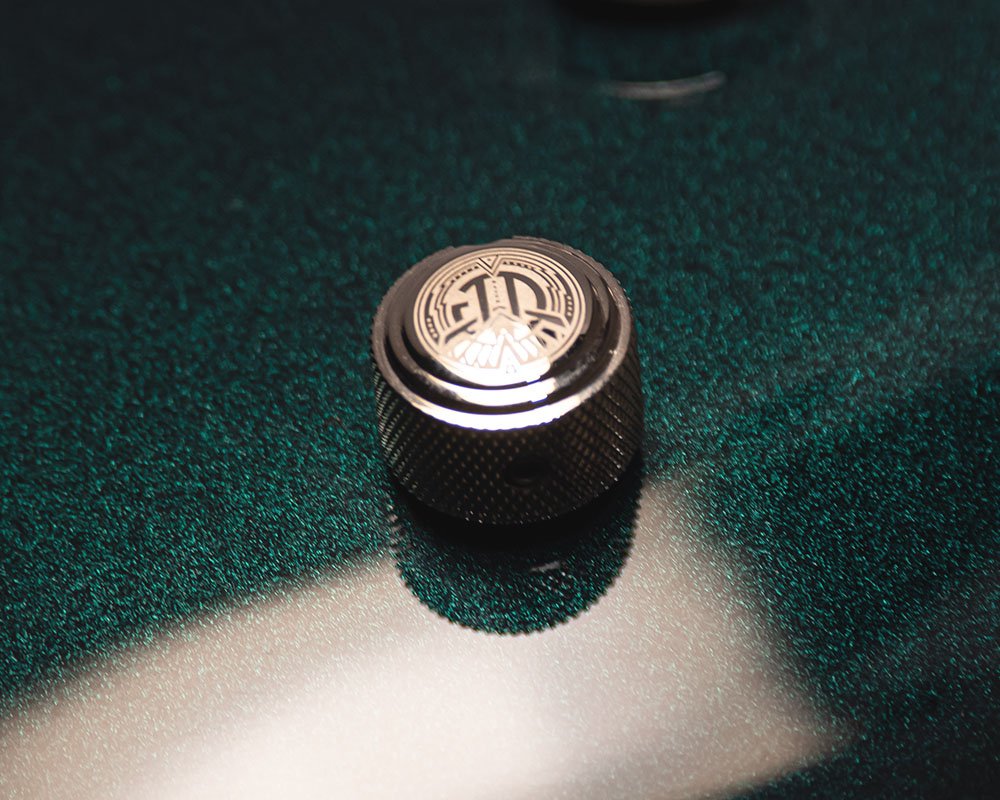

The Duesenberg Speed Pot works with a reduced 70° rotational angle and allows for quick manipulation of the guitars volume.
| Type: | Set Neck, 1-piece Mahogany |
| Width: | 42,5 mm / 1.67" (nut), 52 mm / 2.05" (12th fret) |
| Thickness: | 21 mm / 0.8" (1st fret), 24 mm / 0.95" (12th fret) |
| Shape: | Medium D |
| Fingerboard: | Indian Rosewood, radius 305 mm / 12" |
| Inlays: | Duesenberg Wings |
| Frets: | 22 Jumbo 2.8 x 1.0 mm |
| Scale length: | 648 mm / 25.5" |
| Trussrod: | Steel dual-action |
| Headstock: | Rosewood |
| Type: | Solid Mahogany with sound chambers |
| Top: | Carved solid Maple |
| Dimensions: | 44 x 32,5 cm / 17.32" x 12.6" |
| Height (sides): | 4.5 cm / 1.8" |
| Binding: | Cream |
| Finish: | PUR lacquer |
| Tuners: | Duesenberg Z-Tuners |
| Bridge: | Duesenberg Wraparound Bridge |
| Extras: | Banjo Armrest, JD custom knob & back cover |
| Strap pins: | Duesenberg Standard (Straplock compatible) |
| Hardware color: | Nickel |
| Strings: | Duesenberg Custom 10/50 (010-013-017-028-042-050) |
| Pickup (neck): | - |
| Pickup (bridge): | Duesenberg SplitKing Humbucker (Phonico) |
| Wiring: | 1 Volume, 3-Way Rotary Switch |
| Case: | Premium Line Case (included) |
| Tools: | All required allen keys included |
Instruments we created in collaboration with artists around the world. Designed for their individual needs, but made for everyone.
Bent sides and glued on top and back. Added solid center block. The classic construction. Semi-Hollow instruments combine the distinct tone of a hollow construction with the feedback resistance of a solid body. Extremely versatile.
A solid body that features big sound chambers for enhanced tone and weight reduction. Particularly characteristic tone somewhere between a solid and semi-hollow construction.
Made from a single slab of wood. Delivers instant response, a lot of attack and sustain and perfect feedback resistance.
Full hollow construction for a lot of moving air and distinct classic tone and response. Exceptional tonal character that is well fitted for clean and crunch use.
